Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine

  • Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine
  • Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine
Τόπος καταγωγής Κίνα
Μάρκα DIXUN
Πιστοποίηση CE & ISO 9001:2015
Αριθμό μοντέλου DX-15000T
Ποσότητα παραγγελίας min ένα σετ
Συσκευασία λεπτομέρειες Τα ανταλλακτικά και ο πίνακας ελέγχου θα φορτωθούν σε ξύλινο κουτί. Η κύρια μηχανή είναι γυμνή συσκε
Χρόνος παράδοσης 30 εργάσιμες ημέρες
Δυνατότητα προσφοράς 5 σετ το μήνα
Λεπτομέρειες
Όνομα προϊόντος Μηχανή σχεδίων χαλύβδινων συρμάτων Διάμετρος καλωδίων κολπίσκων 6-12mm
Διάμετρος καλωδίων εξόδου 4-11 mm Ταχύτητα Παραγωγής 180 μέτρα ανά λεπτό
Ισχύς κύριου κινητήρα 55 KW Ισχύς κινητήρα με σύρμα πηνίου 11 kw
Βάρος μηχανής 5.5T Απαιτούμενος χώρος ορόφου 20*4m
Βάρος καλωδίων σπειρών 1Τ ή 2Τ Υλικό σύρματος Χάλυβας χαμηλού άνθρακα
Επισημαίνω

Steel Wire Drawing Machine with warranty

,

Cold Rolling Steel Bar Machine

,

Ribbed Steel Wire Drawing Machine
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine





Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Introduction



The cold rolling steel bar ribbed machine is to roll surface of steel round bar to form three ribs rebar.

Raw material is hot-rolled low carbon steel wire rod

Usage: This production line is mainly to make 6--12mm reinforcing steel bars with three-side ribs. The finished product is widely used in highway, road, city planning and construction works.



Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Advantages



1. This device adopts PLC touch screen numerical control system to make the operation easier.

2. The production line adopts the most advanced international frequency conversion and servo technology or independent frequency conversion control technology, and it effectively protects the power transmission system and equipment from damage. It maximizes the service life of the machine. It can save electricity 30-40%, the maximum line speed can reach 190 meters, increase production efficiency by more than 40%.

3. We adopt self-developed reducer as the national patented product, which is the fastest speed in China, simplifies the structure of the production line, and makes the equipment more reasonable and compact. (The speed reducer between the main reducer and the main rolling mill is omitted and the deceleration is reduced. Due to the long transmission distance of the machine and many problems connecting the flanges, it effectively improves the transmission efficiency by more than 30%, and improves the stability of the equipment by more than 60%. It effectively improves the production efficiency of the equipment.

Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Feature:

Gearbox Reducer, large torque, low noise, durable.

Advanced frequency inverter technology, can save 40-60% of electricity consumption.

The production speed can be up to 120 meters per minute, improve production efficiency.

Technology applied on the vibration aging process, eliminating the pre-stressing.

Process:

Raw material→cannon pay-off stand→Sheller→Dry Lubrication→ reduce wire diameter→ rolling mill machine for ribbing→Coiling

Technical Parameters of Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine

Model DX-15000T DX-20000T DX-30000T
Inlet Wire Diameter 5.0-13.5mm 6.0-14.0mm 6.5-16mm
Outlet Wire Diameter 4.0-12.0mm 4.0-13.0mm 4.0-14.0mm
Main Machine Power 55KW 66KW 150KW
Take- up Power 11KW 11KW or 18.5kw 11KW or 18.5KW
Cutting power 7.5KW 7.5KW 11KW
Cutting Length 1-12m 1-12m 1-12m
Cutting Error ±5mm ±5mm ±5mm
Working Speed 100 m/min 120 m/min 180 m/min
Control Way Frequency Control
Way of Taking-up Wire Spool Take-up Machine (1 tons or 2 tons)
Floor space 35*4m(L*W) 35*4m(L*W) 35*4m(L*W)



Application of Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine



Widely used in concrete structures such as floor slabs, floors, beams, and columns. The three-sided ribbed design significantly enhances the bond strength with concrete, improving overall load-bearing capacity and structural stability.



Suitable for precast slabs, precast beams, and lightweight structural components. Features high tensile strength, uniform rib shape, and stable stress performance, facilitating standardized and large-scale production.



Commonly used in residential buildings, commercial buildings, and various infrastructure projects. While meeting structural strength requirements, it effectively reduces steel consumption, balancing safety and economy.



Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine Photos

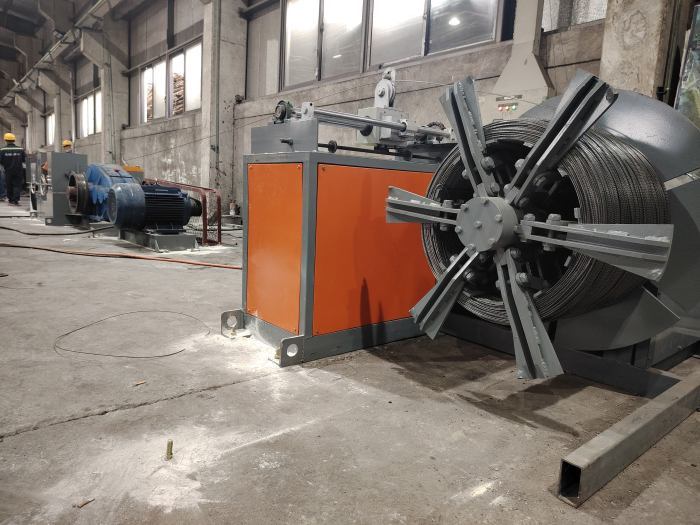

Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine 0

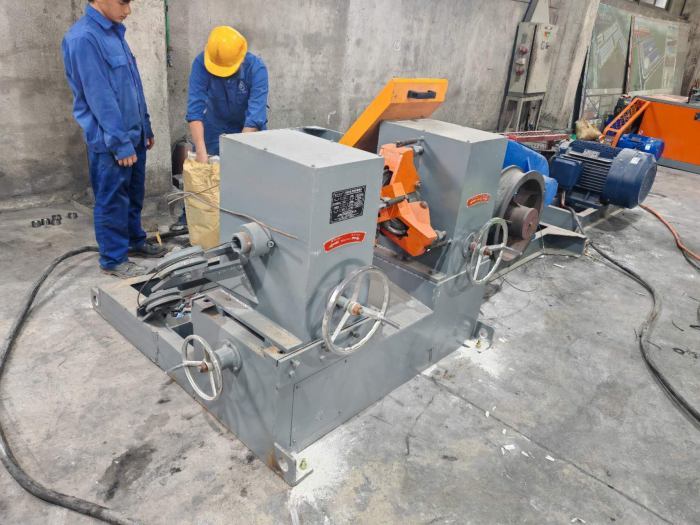

Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine 1

Steel Wire Drawing Machine / Cold Rolling Steel Bar Ribbed Machine 2
